Solenoid explosion-proof valve 10/250/072/126 with solenoid 07/AC/230/2

Solenoid explosion-proof valve 10/250/072/126 with solenoid 07/AC/230/2
Solenoid explosion-proof valve 10/250/072/126 with solenoid 07/AC/230/2
Solenoid explosion-proof valve 10/250/072/126 with solenoid 07/AC/230/2
Solenoid explosion-proof valve 10/250/072/126 with solenoid 07/AC/230/2
Solenoid explosion-proof valve 10/250/072/126 with solenoid 07/AC/230/2

Товары текущей категории:


SPECIFICATION:

Normal position valve

normally open

Mode of action

with downloadable spool piece

  Direction of fluid supply
  one-way

Diameter (DN), mm

10

Operating pressure Рр, kgf/sm2

0…250

 Pressure difference for valve ∆Р, кгс/см2

0...250

Trim impermeability

class А

Ambient temperature, оС

–50…+60

Fluid temperatureТр, оС

-50…+80

Type of pipeline’s joint with valve

nozzle М20×1,5

Size, mm

260 х 172 х 136

Mass, kg

6,5±0,5

Coil voltage, V

230±10 % АC

Type of valve protection
  1Ex d IIВ T3 Gb

Watt consumption
- power boost mode, not more than
- hold mode

200
10±1

Duty rating, %

100

Size, mm

64x39x163

rate of valve operation, cycles per hour,
not more than

120


APPLICATION:

  • methane, natural gas

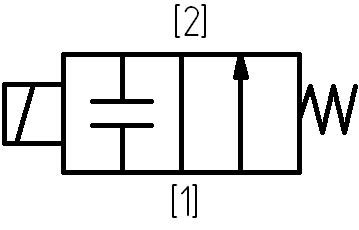

Symbolic notation

схема 10_250.jpg
