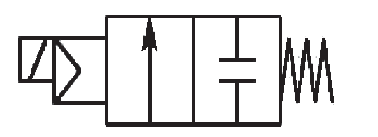

Solenoid valve 80/06/020/135 with solenoid 06/DC/024/2

Mode of action with downloadable spool piece
Diameter (DN), mm 80
Operating pressure range, MPа 0...0,6
Pressure difference for valve ∆P, MPа 0...0,6
Type of pipeline’s joint with valve flanged
Impermeability class А
Ambient temperature, °С -40...+55
Fluid temperature, °С +40...+50
Coil voltage, V 24±10% DC

Capacity, W:

  • power boost mode
  • hold mode

  • 350
  • 30

Duty rating, % 100
Size, mm 258x195x495
Mass, kg 37


  • air, nitrogen, carbon dioxide, inert gas, gaseous hydrocarbons (propane, butane, methane and mix)

  • water, diesel oil, synthetic and mineral oil;
  • petrol
