Solenoid valve 80/06/328/131/1 with solenoid 09/АС/230/2

Mode of action direct action
Diameter (DN), mm 80
Operating pressure range, MPа 0...0,6
Pressure difference for valve ∆P, MPа 0...0,6
Type of pipeline’s joint with valve flanged
Normal position valve normally closed
Impermeability class А
Ambient temperature, °С -40...+55
Fluid temperature, °С


Coil voltage, V 230±10%АС

Capacity, W:

  • power boost mode
  • hold mode
  • в режиме нагрева, Вт, не более

  • 300
  • 80
  • 250

Current frequency, Hz
Duty rating, % 100
Size, mm 555x225x310
Mass, kg 60

Optional modules:

heating coil


  • mazut with viscosity up to 200 cst

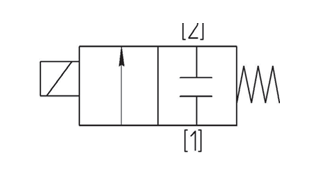

Условное обзначение:
